Product Overview

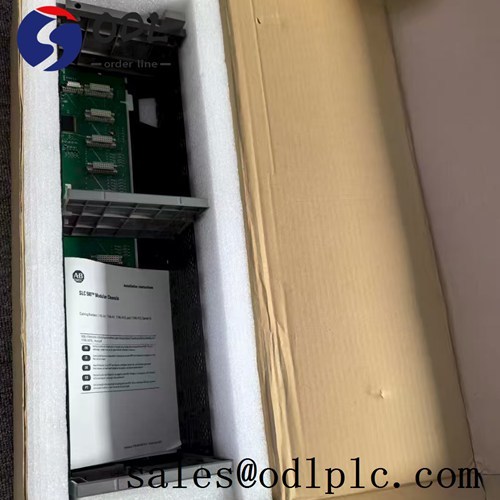

Allen Bradley 1746-A13 is an I/O chassis with 1746 I/O modules in the SLC 500 product series. This chassis includes 13 slots for customizing your system.
Other features of 1746-A13 include LED indicator lights that provide fast and reliable power status information. The maximum holding time of the chassis is between 20ms-3s, depending on the current load. 1746-A13 uses a 120-240V AC power supply, which can be selected through jumper settings. The operating conditions of 1746-A13 should be maintained between 0-60 degrees Celsius (34-140 degrees Fahrenheit). The storage temperature should be between -40-85 degrees Celsius (-40-185 degrees Fahrenheit). The standard humidity range is 5-95% non condensing humidity.
Key Features
Manufacturer:Rockwell Automation
Series:SLC 500
Part Number/Catalog No.:1746-A13
Brand:Allen-Bradley
Module Type:Chassis
No. of slots:Thirteen (13) slots
Backplane Current:5.1V dc @ 10A; 24V dc @ 2.88A
No. of mounting tabs:Eight (8)
Operating Temperature:0°C to +60°C (+32°F to +140°F)
Storage Temperature:-40°C to +85°C (-40°F to +185°F)
Relative Humidity:5 to 95% (without condensation)
Mounting Clearance:Top clearance: >15.3 cm (6.0 in) Side Clearance: >10.2 cm (4.0 in)
Hardware Type:I/O Chassis
Slots:13
